The National Research Institute of Cultural Heritage is using a geophysical method in order to investigate the internal structure of the underground area in connection with an investigation into buried cultural heritages.



What is the Cultural Relics Prospecting?

Cultural relics prospecting is a field that supports the survey and excavation of buried cultural relics through geophysical prospecting techniques as well as techniques drawn from electronic engineering and computer science.

Subsurface prospecting, prior to the excavation of buried cultural relics, can help determine the precise location of the target cultural relics, their size and their pattern of distribution by displaying the information through imaging techniques. These scientific data are extremely useful for effective planning of archaeological excavations.

By comparing archaeological data and scientific prospecting data, an archaeologist can obtain more reliable information, consequently decreasing the time and cost of and excavation and enabling efficient planning for better results. Technology-aided prospecting techniques also allow archaeologists to gather data on protected cultural relics without drilling or digging.



The surface survey project

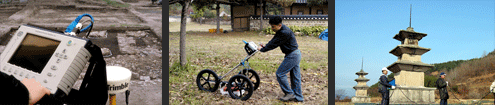

A GPR survey images the subsurface by transmitting electromagnetic radiation to a subsurface area and measuring the difference in amplitude between the initial radar pulse and the return pulse and its time of arrival. This survey technique is extremely useful for imaging buried cultural properties such as the interior of an ancient tumulus, building sites, shell mounds or kilns.

Ground penetrating radar survey image Ground penetrating radar survey
Wolseong Palace Site, Gyeongju (Historic Site No. 16)

Gyeongju was the royal capital of Silla for nearly ten centuries (57 B.C. - 935 A.D.). The inner part of the royal capital, surrounded by fortified walls, was called Wolseong. Extending 1,841m in circumference, 860m east to west, and 260m north to south, Wolseong enclosed an area of 112,500m2 (About 34,000 pyeong). Excavations in the area presumed to be the former site of a moat began in the 1980s. GPR survey techniques are used for protected areas inside the fortress.

Satellite Details image Satellite Details
Ceramics contaminated by iron oxides image Ceramics contaminated by iron oxides
Interpretation of Results
SECTION 1 image SECTION 1

A GPR survey identified seven square building sites, most of them about three by four kan (kan is a traditional unit equal to the space between two columns) and a row of wall foundation stones. Toward the south side, a series of cornerstones, surrounding another building site in a rectangular shape, were discovered.

SECTION 2 image SECTION 2

An area presumed to have been the site of the entrance to the fortified city has been identified here. The area was enclosed by walls, extending from a low-rising section of the fortress wall. A building site, presumably that of a defense structure, has also been discovered. The two building sites identified near Seokbingo, the ice storage of the royal house, appear to have been connected with seven building units that were once situated in Section 1.

SECTION 3 image SECTION 3

A folium over 40m wide has been identified in this section of Wolseong. On the vertical sectional view by GPR imaging, the shape appears close to that of shallow dish. Similar to a former both in shape and size to a pond site discovered through surface survey inside the fortified city, situated toward the west side, this area is presumed to have also been the site of a shallow pond, 0.5m deep.

SECTION 4 image SECTION 4

In this area, located at the eastern extremity of the fortification, five large cornerstones, exposed at the surface, have been found. The building site proved to be far larger than estimated through GPR survey and was surrounded by several other building sites. The rows of stones present along the line at which the slanted plane of the fortress walls and the level ground meet hint at the possible existence of a drainage duct.



The surface survey project

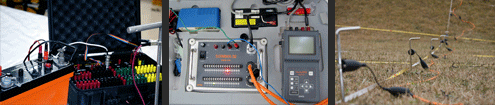

Electrical resistivity survey measures the resistance of the subsurface to the flow of an electrical current, which varies depending on the water content, dissolved ion concentration, soil components such as clay, sand and gravel, and degree of efflorescence. This technique is highly effective for determining the subsurface stratification pattern and soil characteristics and may be used to investigate tombs, building sites, kiln sites and shell mound sites without digging.

Resistivity survey image Resistivity survey
Gameunsa Temple Site in Gyeongju, Gyeongsangbuk-do (Silla)
The surface survey project Image

The surface survey project

Electrode arrays are the most accurate method of imaging subsurface soil structures and are, for this reason, widely used for assessing archaeological sites and geological surveys. This image shows the soil stratification below ground immediately north of the stone pagoda at the Gameunsa Temple site in Gyeongju. The section 2m below the ground surface, with a high resistivity value, appears to have been a soil layer, reinforced for construction of a building. The other section, situated 7m below the surface, also has a high resistivity value and is likely to be a rock stratum.


Interpretation of Vertical Section of a Subsurface Area image Interpretation of Vertical Section of a Subsurface Area
Produced by Electric Resistivity Survey image Produced by Electric Resistivity Survey
Dwelling Site in Gapyeong-ri, Yangyang, Gangwon-do (Iron Age)

The electrode array method is a highly effective technique for surveying archaeological remains, as it is possible to obtain good results even with low electric currents, which permit easy movement of electrodes, and probe the subsurface at any depth without drilling or digging. This Iron-Age dwelling site, in the shape of the Chinese character " 呂 " was surveyed with precision using the electrode array technique. The layers with a high level of resistivity are well-reinforced compact soil layers.

Dwelling Site in Gapyeong-ri, Yangyang, Gangwon-do image Dwelling Site in Gapyeong-ri, Yangyang, Gangwon-do
Dwelling Site in Gapyeong-ri, Yangyang, Gangwon-do image Dwelling Site in Gapyeong-ri, Yangyang, Gangwon-do


Magnetic Survey

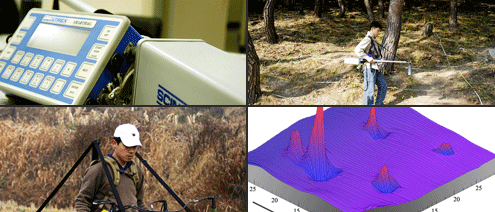

Magnetic survey is an especially effective method to employ on archaeological sites where the iron content of the soil was modified by human activities, or the soil acquired magnetism due to the recurrent use of fire. This method is optimally suited for kiln sites, fireplaces and stoves, outdoor fireplace sites and iron-making sites, among others.

Electrical resistivity survey image Electrical resistivity survey
Kiln sites in Mulcheon-ri, Songok-dong, Gyeongju, Gyeongsangbuk-do (Silla)
Relics in Mulcheon-ri, Songok-dong, Gyeongju Image

Relics in Mulcheon-ri, Songok-dong, Gyeongju

Scores of ancient kiln sites have been discovered in the archaeological site at Mulcheon-ri, Songok-dong, Gyeongju, within an area slated for a racetrack development project. The magnetic field activity of the site was measured using a proton precession magnetometer, and several dipoles were identified. As a general rule, the magnetic field strength is higher at the entrance point of a fireplace, due to the higher temperature, and dipoles are also frequently formed there.



Aerial Photography

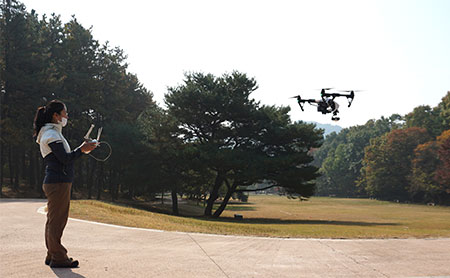

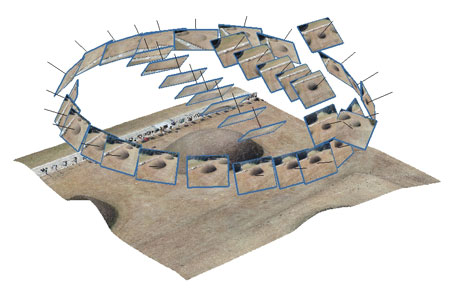

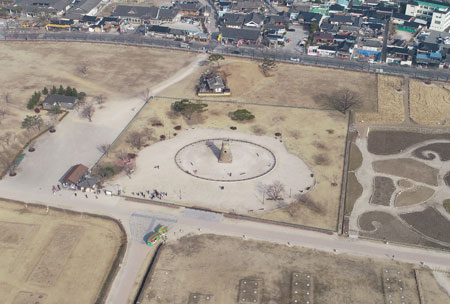

The Research Division of Archaeology at the National Research Institute of Cultural Heritage uses aerial photography from unmanned helicopters. Aerial photos and videos are taken by a team of two, in charge of radio-controlling the unmanned helicopter and the camera, respectively.

Onsite Preparation image Onsite Preparation
Aerial photography helicopter image Aerial photography helicopter
Sungnyemun Gate, Seoul excavation site image Sungnyemun Gate, Seoul excavation site
National Research Institute of Cultural Heritage & Central Cultural Heritage Center image National Research Institute of Cultural Heritage & Central Cultural Heritage Center
Wolseong in Gyeongju image Wolseong in Gyeongju
Panoramic view of a folk village in Naju image Panoramic view of a folk village in Naju
Excavation site in Archaeological Site in Gwanbuk-ri, Buyeo image Excavation site in Archaeological Site in Gwanbuk-ri, Buyeo
Excavation site in Inyongsa temple site in Gyeongju image Excavation site in Inyongsa temple site in Gyeongju
